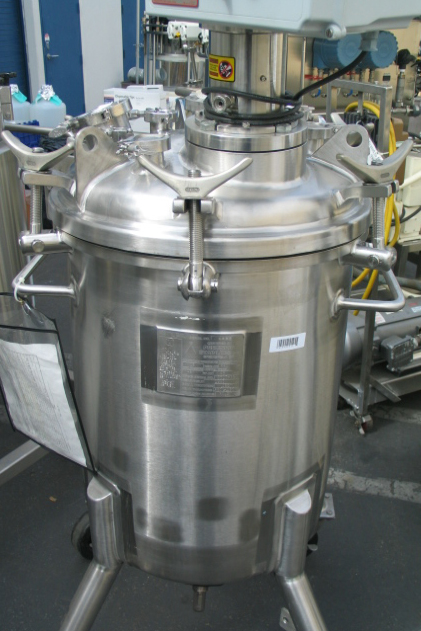

Precision Stainless 150 Liter Tank with Lightnin Mixer

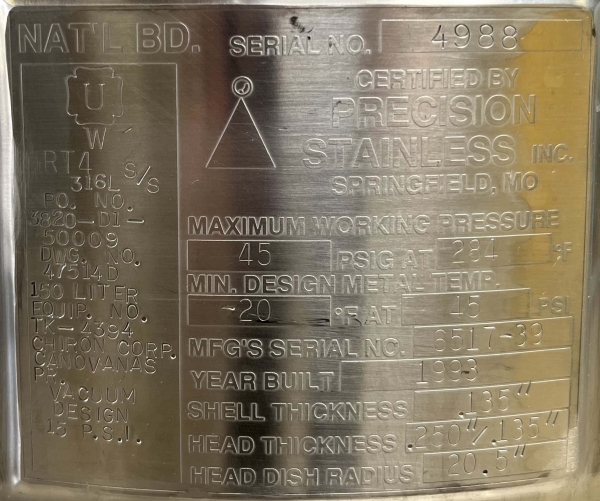

• National Board Serial Number: 4988
• Manufacture Serial Number: 6517-3
• Manufactured in 1993 with 316 L stainless steel, insulated, non- jacketed
• Vacuum Designed for 15 psi. Max 45 psi at 284F. Min 45 psi at -20F
• Capacity: 150 L
• Full hinged lid, dished top and bottom
• Top ports:
  • (1) 7 1/2" off center agitator port
  • (3) 3" sanitary port
  • (4) 1 1/2" sanitary
  • (1) 1" sanitary
• Bottom port:
  • (1) 1/2" with ITT valve
• Interior dimensions: 50 x 80 cm

Off center top mounted mixer:

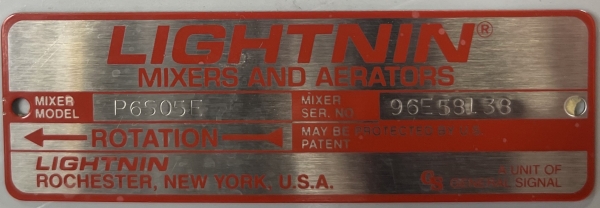

• Lightnin Mixer Model: P6S05E
• Lightnin Mixer Serial: 96E58138
• Dimensions: 1/2" diameter x 25" long 316 stainless steel threaded shaft. Approximately 7" diameter three blade prop
• Speed: Driven by a 1/15 hp, variable speed DC motor thru a reducer, 15:1 ratio, 175 output rpm. Includes an XP control panel with start/stop controls.
